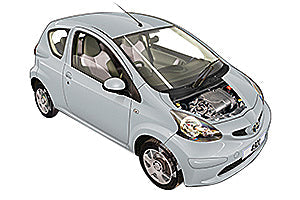

Fusebox and diagnostic socket locations Toyota Aygo 2005 - 2011 | Haynes Manuals

Fusebox and diagnostic socket locations Toyota Aygo 2005 - 2011 | Haynes Manuals

1 minute read

Toyota Aygo manual

Toyota Aygo

2005 - 2011
Time
10 minutes
Difficulty
Find your vehicle
 - step 1
Undo the screws and remove the instrument cluster surround
 - step 2
Fuses are located each side of the instrument cluster
 - step 3
Additional fuses are located in the engine compartment
 - step 4
Use the tweezers provided to extract the fuse
